Brewing

Brew Houses

QTS offers full and complete 2-4 Vessel Brewhouses ranging from 3-1/2BBL to 100BBL in size! Custom built to your specifications, our systems can be manufactured around your building’s height/space restrictions. Whether you’re starting from scratch or expanding we can help you design, create and install your dream brewhouse.

Standard Construction:

  • 2-4 Vessel
  • Manual to Fully Automated
  • Steam or Direct Fire
  • 3-A Standards
  • Complete Stainless Steel Construction

We also supply all Brewhouse equipment such as:

Boilers, Chillers, Grain Handling, Walk-In Coolers, Keg Washers, Bottling Lines and more!

Mash Tank



Standard Construction:

  • Flanged & Dished Top Head
  • NORD Gear Drive
  • Turbine Agitation
  • Glass Top Manway
  • Tank Light
  • Removable CIP Assembly
  • Side Wall Baffles
  • Steam Jackets
  • Shallow Cone Bottom
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Offered as Combination Mash/Lauter Tun
  • Hydrator
  • Knife Gate

Lauter Tun

QTS  Lauter Tun vessels utilize a tight tolerance wedge wire screen fit precisely at the bottom of the vessel with the proper reinforcement to eliminate the screen from bending under a heavy mash bed. Our tight tolerance minimizes excess grains from getting past the screen. Lauter tun tanks come complete with gear drive and agitation based on the size of the vessel.

Standard Construction:

  • Freeboard above Grain Bed Depth
  • Flanged & Dished Top Head
  • NORD Gear Drive
  • Rake Assembly with Plow Bar
  • Glass Top Manway
  • Tank Light
  • Removable CIP Assembly
  • Rectangle Side Entry Manway
  • Wedge Wire Screen False Bottom
  • Shallow Cone Bottom
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Offered as Combination Mash/Lauter Tun
  • Under screen CIP

↓ Check it out in action! ↓

Brew Kettle

QTS Brew Kettles offer a steam-driven Omega Heat Transfer Surface Jacket to allow precise boiling to eliminate over boiling.

Standard Construction:

  • Flanged & Dished Top Head
  • Vent Stack with DMS Drain
  • Glass Top Manway
  • Tank Light
  • Removable CIP Assembly
  • Steam Jackets
  • Shallow Cone Bottom
  • Vortex Breaker
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Offered as Combination Brew Kettle/Whirlpool
  • China Hat Assembly
  • Direct Fire
  • Vent Stack Installation



Whirlpool Tanks

QTS whirlpool vessels are offered as standalone or combination vessels sized specifically to system capacity.

Standard Construction:

  • Flanged & Dished Top Head
  • Glass Top Manway
  • Tank Light
  • Removable CIP Assembly
  • Shallow Cone Bottom
  • Vortex Breaker
  • Trub Guard
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Offered as Combination Brew Kettle/Whirlpool



Calandria

QTS steam-driven Calandrias are offered to achieve boiling temperatures without the use of the heat transfer surface jacket. Our Calandrias are a cylindrical shell and tube design, custom-sized to meet the requirements of your specific brewhouse.

Standard Construction:

  • Insulated Shell & Tube Design
  • 316L Sanitary Inner Tubes
  • Flanged Ends for Accessibility
  • Square Tube Frame with Adjustable Feet
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Flexible Design to fit Brew House

Hot/Cold Liquor Tanks

QTS Hot and Cold Liquor Tanks are designed accordingly based on the size of the brewhouse as well as customer requirements.

Standard Construction:

  • Flanged and Dished Top Head
  • Round Cross-Arm Manway
  • Insulated Vessel
  • Heat Transfer Surface Jacket
  • F&D or Flat Pitched Bottom
  • Overflow
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • 304 or 316L Stainless Steel
  • Visual Sight Gauge
  • Immersion Heaters

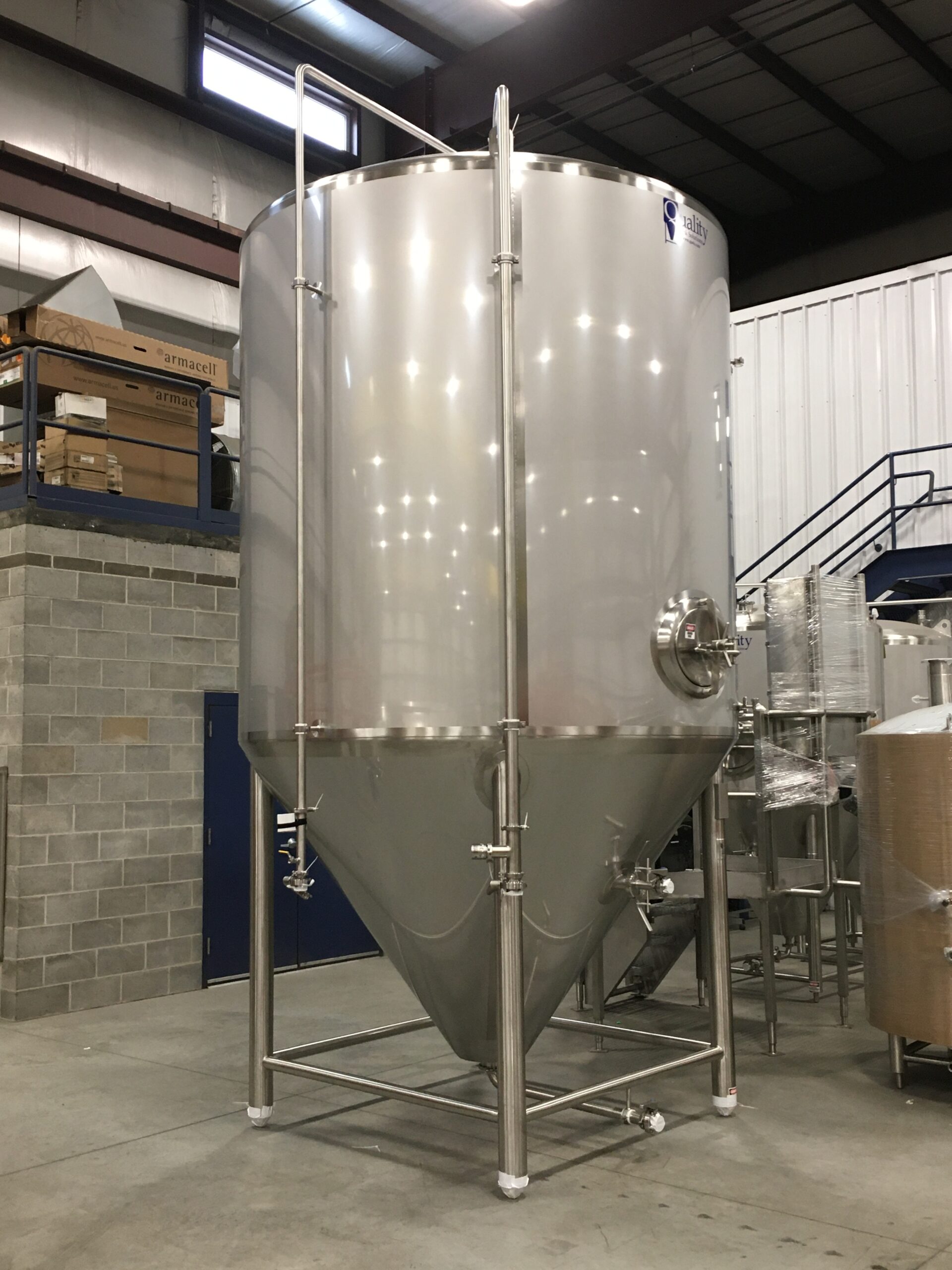

Fermentation Tanks

QTS Fermentation tanks are sized for maximum yield due to our freeboard calculations. Higher yield results in greater ROI. These tanks utilize the function and precision of Omega laser welded heat transfer surface jackets which allow increased flow and quicker crash times.

Standard Construction:

  • Flanged and Dished Top Head
  • Toriconical Bottom Cone
  • Insulated Vessel
  • Heat Transfer Surface Jacket
  • Top/Bottom/Side Entry Manway
  • Removable CIP Assembly w/ Whirly Spray Device
  • Racking Arm
  • Fully Equipped (PRV, Sample Valve, Butterfly Valves, CIP Accessory)
  • 3-A Standards
  • Complete Stainless Steel Construction

 Available Options:

  •  UNI Tank



Brite Tanks

QTS Brite Tanks utilize Omega laser welded heat transfer surface jackets for ample flow and fast cooling.

Standard Construction:

  • Flanged and Dished Heads
  • Insulated Vessel
  • Heat Transfer Surface Jacket
  • Side Entry Manway
  • Removable CIP Assembly w/ Whirly Spray Device
  • Visual Sight Gauge Assembly
  • Fully Equipped (PRV, Sample Valve, Butterfly Valves, Carbstone Assembly, CIP Accessory)
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Racking Arm



Lager Tanks

QTS Horizontal tanks are highly efficient because they contain more surface area coverage.

Standard Construction:

  • Flanged and Dished Heads
  • Insulated Vessel
  • Heat Transfer Surface Jacket
  • 1/4″ Thick Formed Saddle w/ Adjustable Feet
  • Oval Swing-In Manway
  • Removable CIP Assembly w/ Whirly Spray Device
  • Fully Equipped (PRV, Sample Valve, Butterfly Valves, CIP Accessory)
  • 3-A Standards
  • Complete Stainless Steel Construction

Available Options:

  • Stacked Tank Design
  • Visual Sight Gauge Assembly

Q-BOT

The QTS Q-Bot is a dry hop or slurry dosing vessel uniquely designed for user flexibility! This tank is used for ingredient addition at many different points within the process.

Standard Construction:

  • Shallow Cone Top head
  • 24″ Round Pressure Manway
  • Interchangeable Perforated Baskets (1/8″- 1/4″- 1/2″)
  • Tangential Side Inlet
  • Removable Recirc Assembly w/ Static Spray Ball
  • Rolled Push Ring
  • Caster Wheels
  • 3-A Standards
  • Complete Stainless Steel Construction

CUSTOM OPTIONS AVAILABLE

Get in touch with us to learn more!
