Listing #: 004

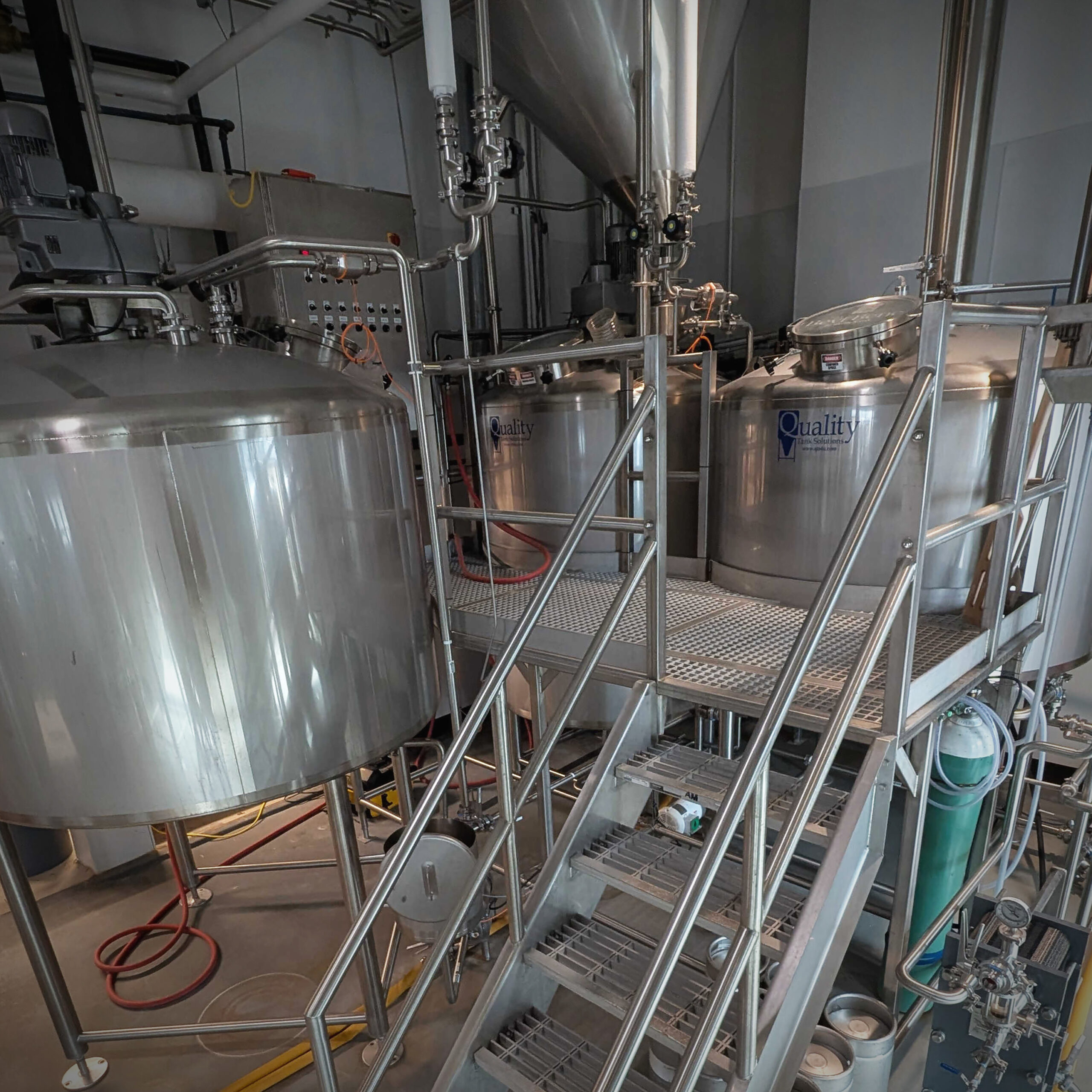

15 bbl Brewing System

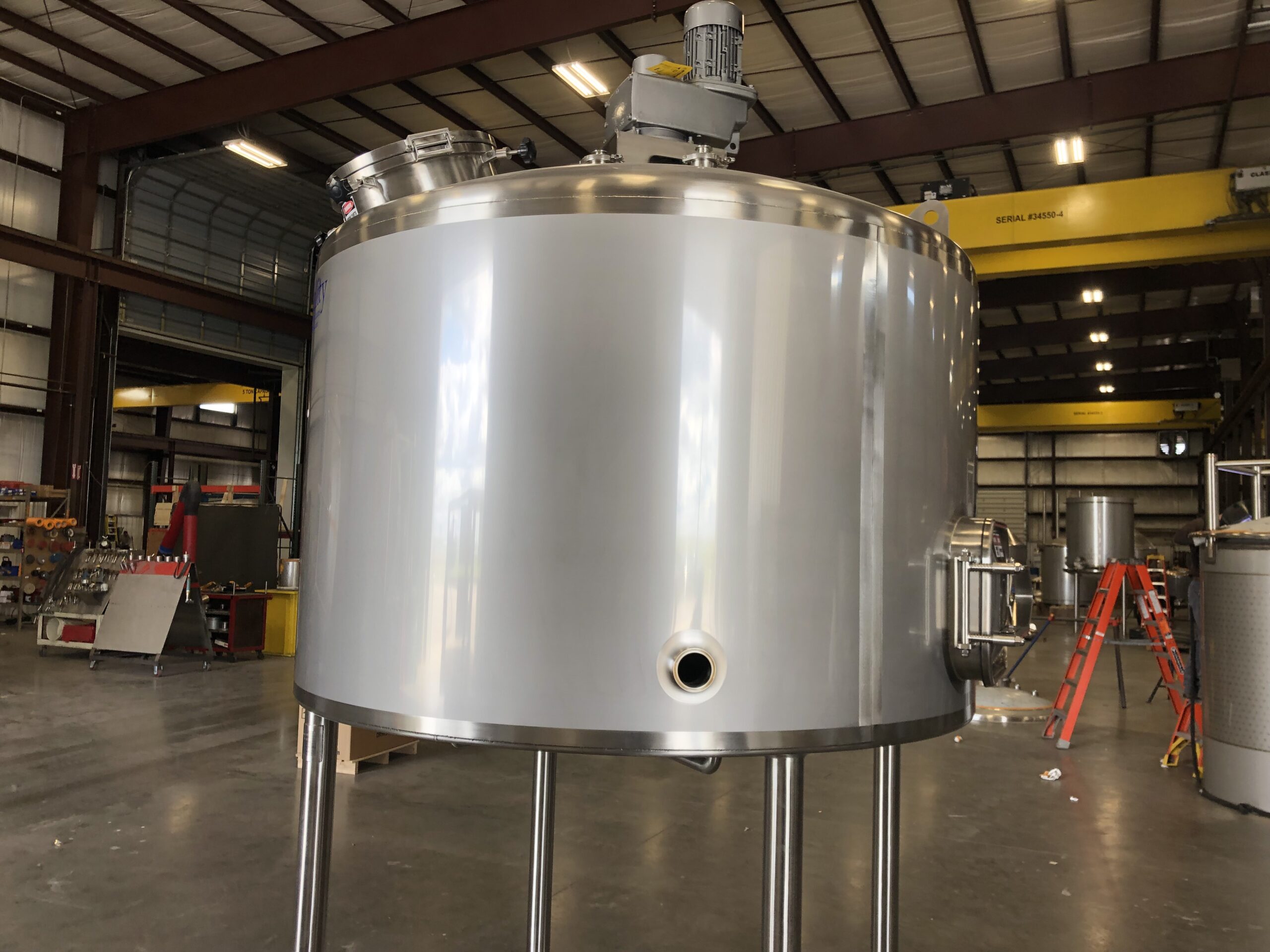

Mash Tank: Used
- Quantity: 1
- Manufactured by Quality Tank Solutions
- Capacity: 20 BBL
- Size: 62″ OD
- Height: 135″ OAH
- Empty Weight: 2,250 lbs
- Full Weight: 8,946 lbs
Lauter Tun: Used
- Quantity: 1
- Manufactured by Quality Tank Solutions
- Capacity: 20 BBL
- Size: 74″ OD
- Height: 138″ OAH
- Empty Weight: 2,111 lbs
- Full Weight: 7,284 lbs

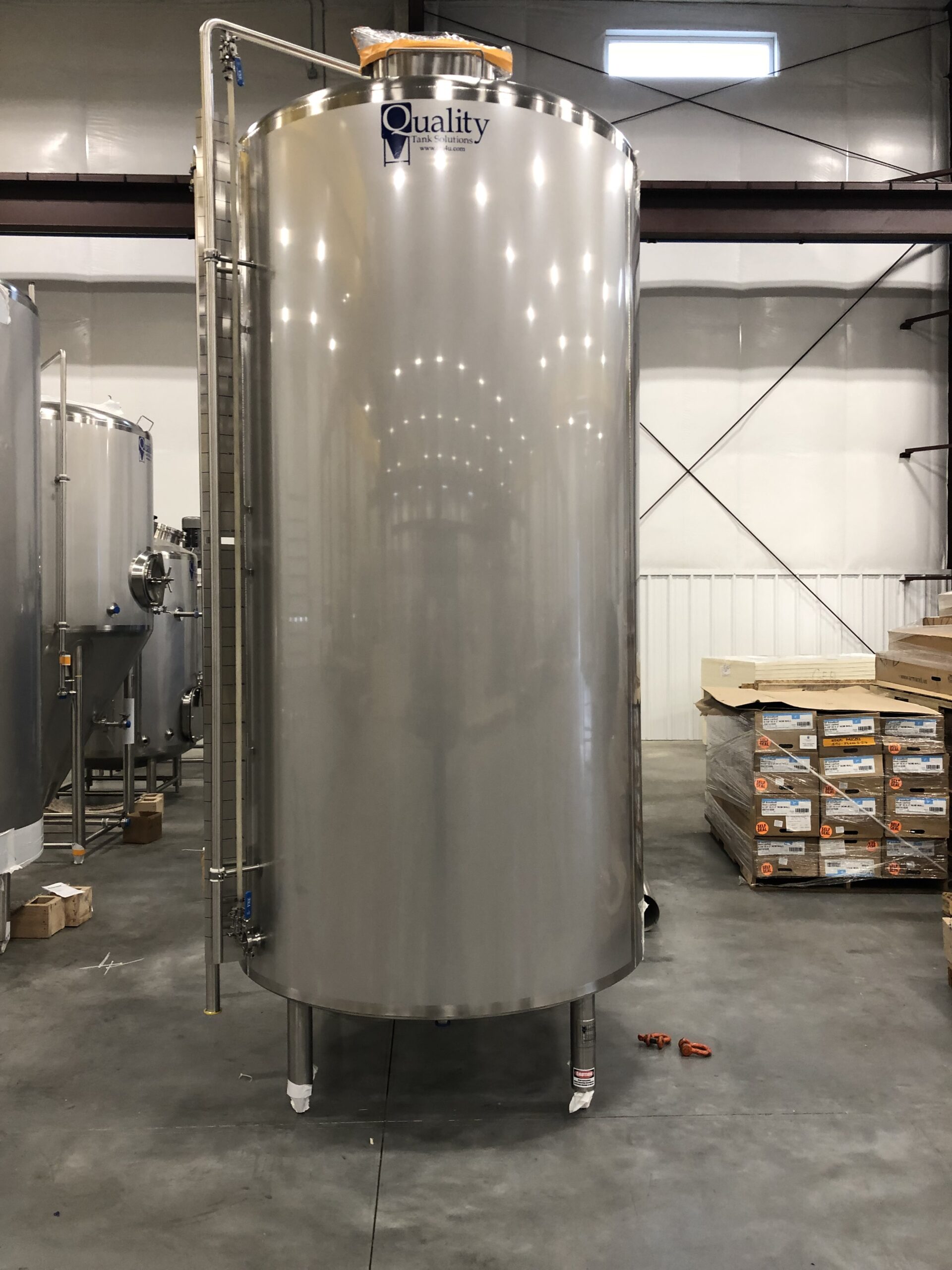

Hot Liquor Tank: Used
- QTY: 1
- Manufactured by Quality Tank Solutions
- Capacity: 40 BBL
- Size: 64″ OD
- Height: 170″ w/ Manway Open
- Empty Weight: 2,330 lbs
- Full Weight: 13,585 lbs
Work Platform:
- Manufactured by Quality Tank Solutions
- 134″ L x 56″ W x 142 H to the top of the Control Panel
- Weight: Approximately 1,761 lbs
(Brew house piping is not calculated into this weight)
Includes:
- P&ID
- Control Panel – 208V 3 Phase

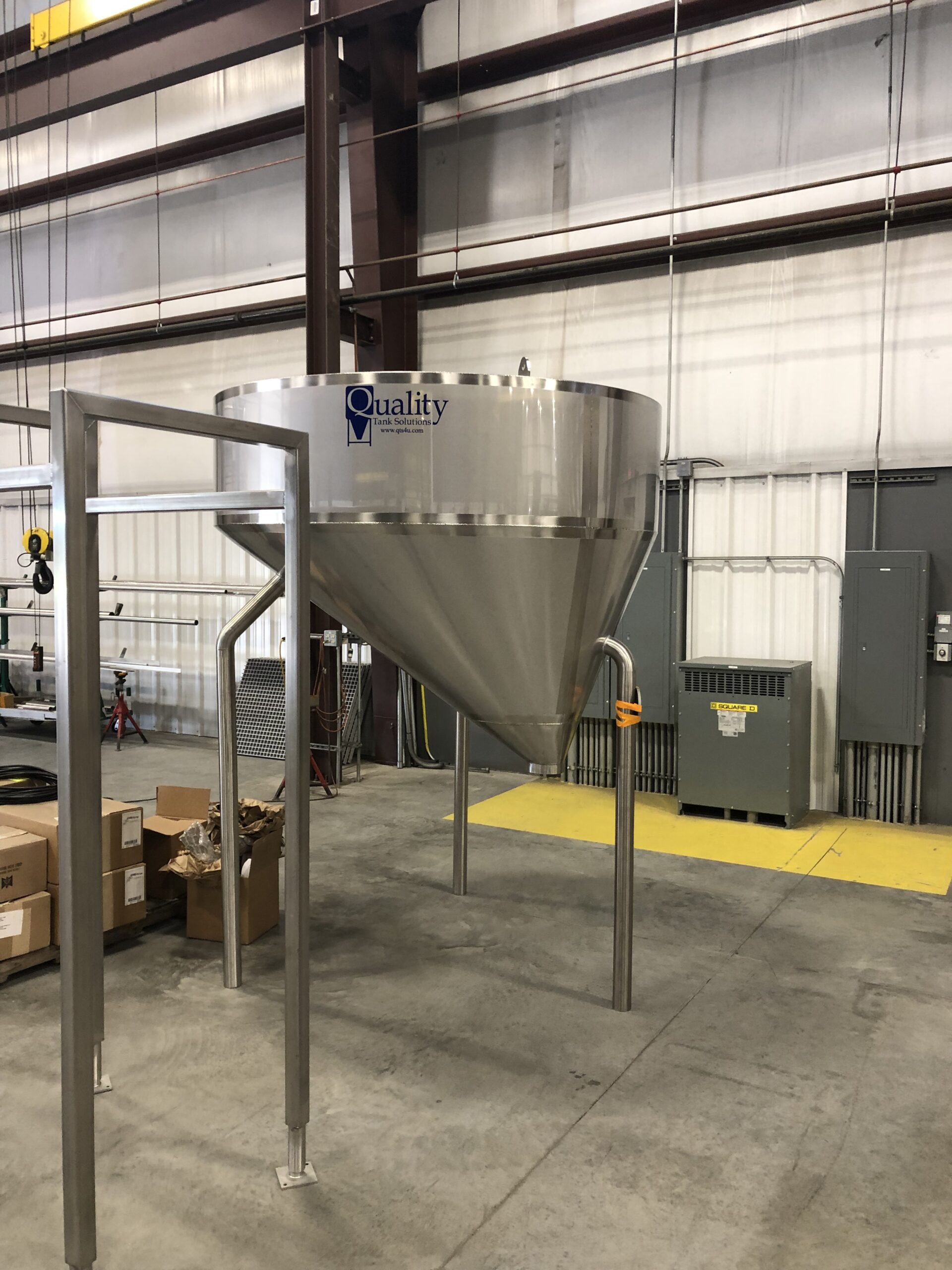

Grist Case (Mounted Above Mash Tank): Used
- Quantity: 1
- Manufactured by Quality Tank Solutions
- Capacity: 1800 lbs
- Size: 62″ OD
- Height: 86″ OAH
- Empty Weight: 633 lbs
- Full Weight: 2,912 lbs

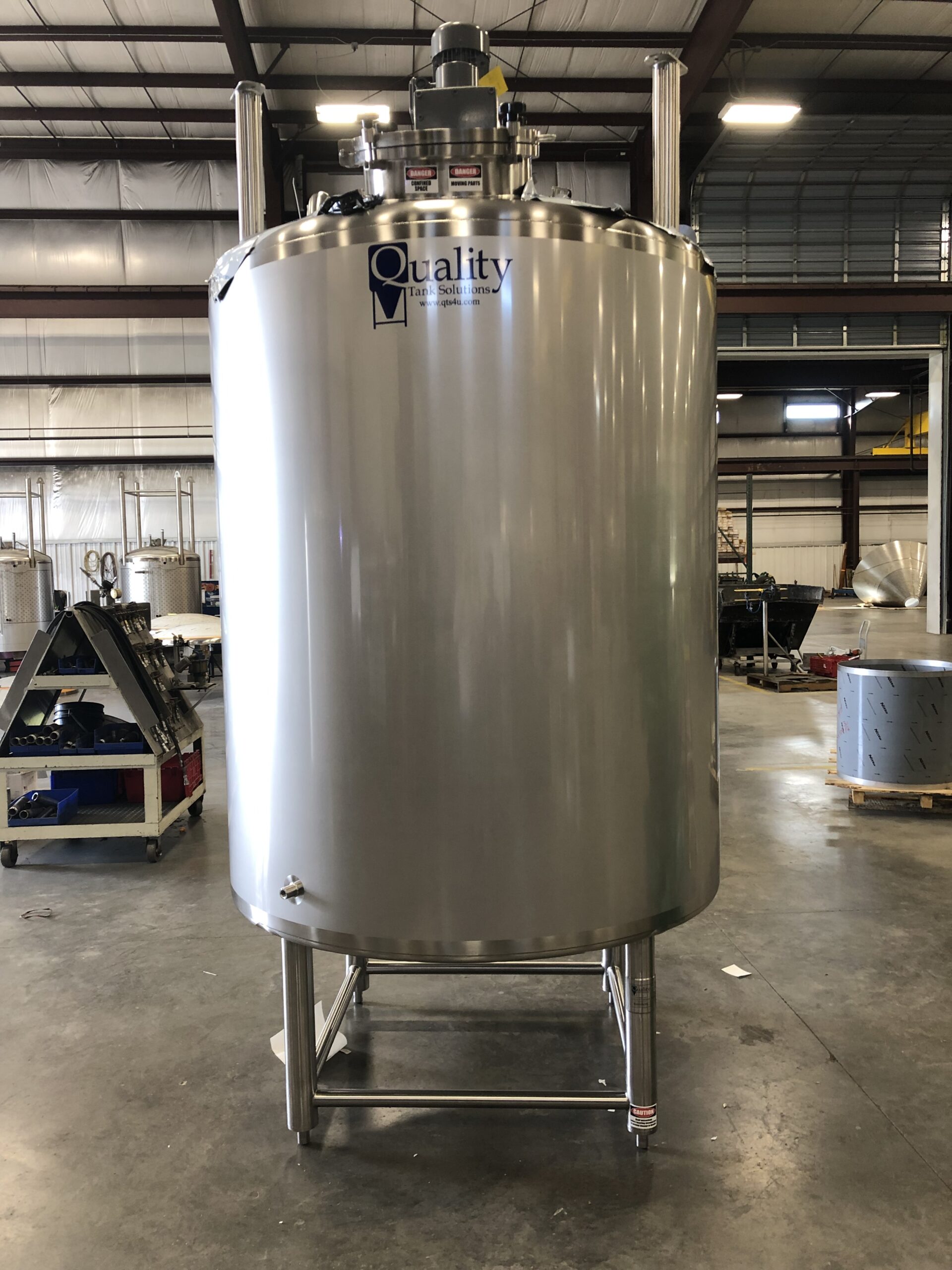

Brew Kettle/Whirlpool: Used
- Quantity: 1
- Manufactured by Quality Tank Solutions
- Capacity: 15 BBL
- Size: 74″ OD
- Height: 116″ OAH
- Empty Weight: 1,578 lbs
- Full Weight: 7,138 lbs
- Vent Stack: 8″ Sch
Cold Liquor Tank: Used
- QTY: 1
- Manufactured by Quality Tank Solutions
- Capacity: 40 BBL
- Size: 64″ OD
- Height: 170″ w/ Manway Open
- Empty Weight: 2,330 lbs
- Full Weight: 13,585 lbs
Heat Exchanger:
- Thermaline Model T13 – Single Stage – 30 Minute Knockout
- Total of 61 CH-Style 316L SS Plates
- Cold Liquor: 55°F at 20 GPM w/ Tri-Clamp Connections
Control Panel:
- 208V 3PH 60Hz 100amps (MOP)
- Size: 48x36x12 NEMA 4x Mounted on Work Platform
Sold all together – Individual purchase not available
$155,000.00
