Listing #: 006

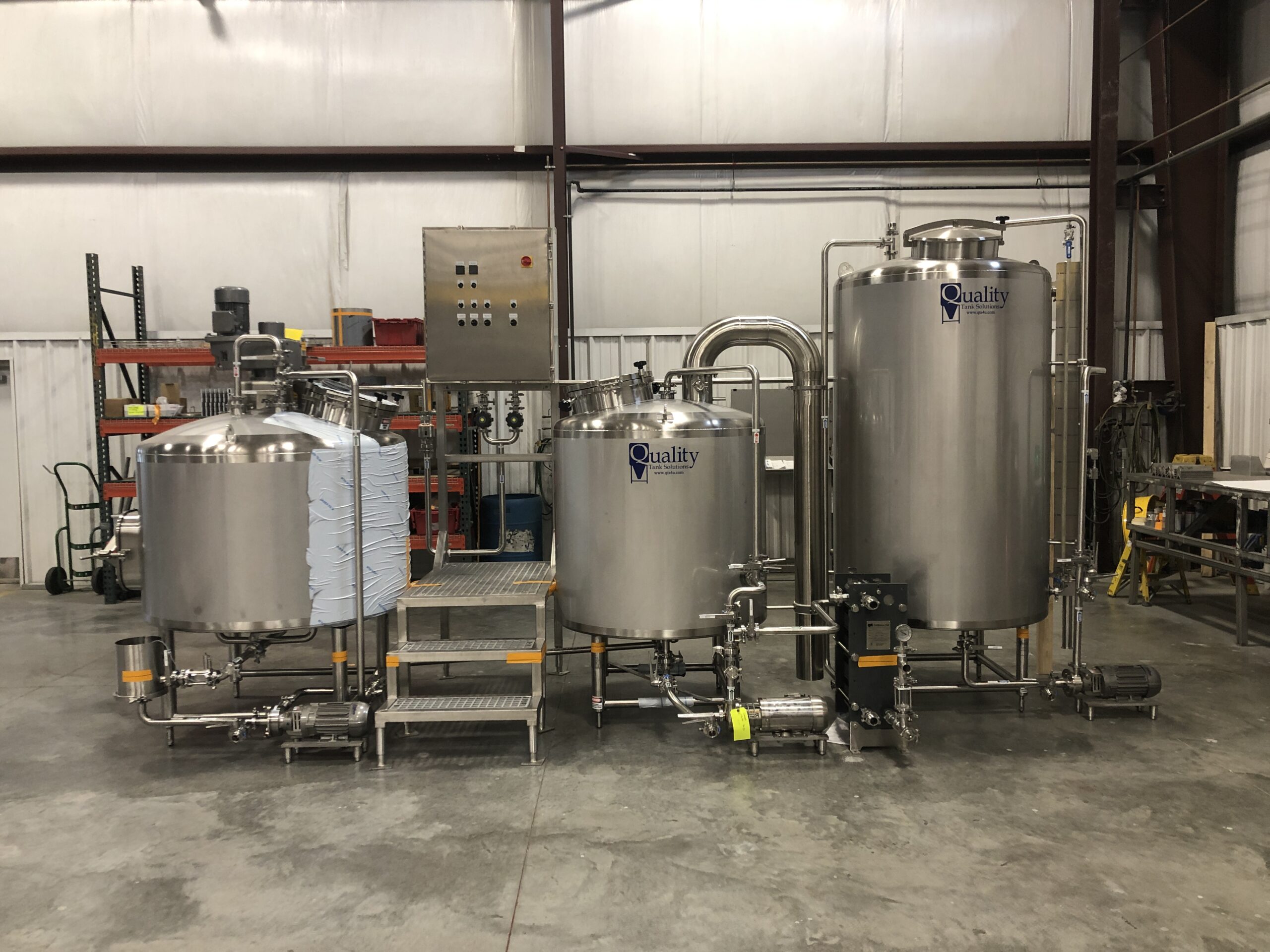

5 BBL Two Vessel Brew System
This system has never been used. It has been in a climate-controlled facility since it was manufactured.
Brew House
- Manufactured by Quality Tank Solutions
- Capacity: 5 BBL
Working Platform
- 65″ L x 30″ W x 108-1/2″ H
- Weight: 360 lbs
(Brew House piping is not calculated into this weight)
Portable CIP / Transfer Pump Cart:
- 208V 1PH 60hz 11amps 1.5HP
- 30 Foot Cord (Plug not Included)

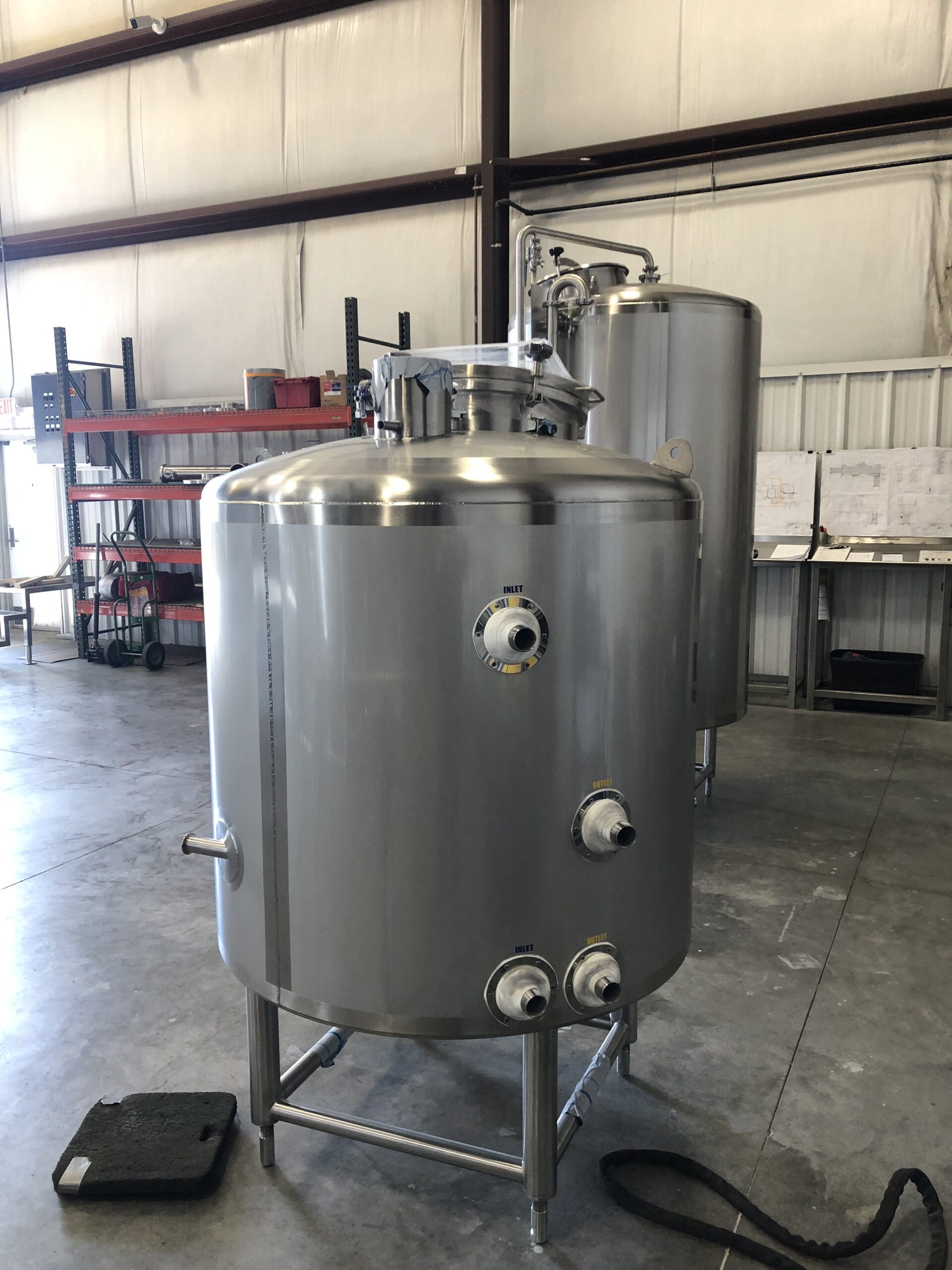

Brew Kettle / Whirlpool:
- Qty: 1
- Capacity: 5 BBL
- Size: 46” OD
- Height: 74” OAH
- Empty Weight: 870 lbs
- Full Weight: 2,625 lbs

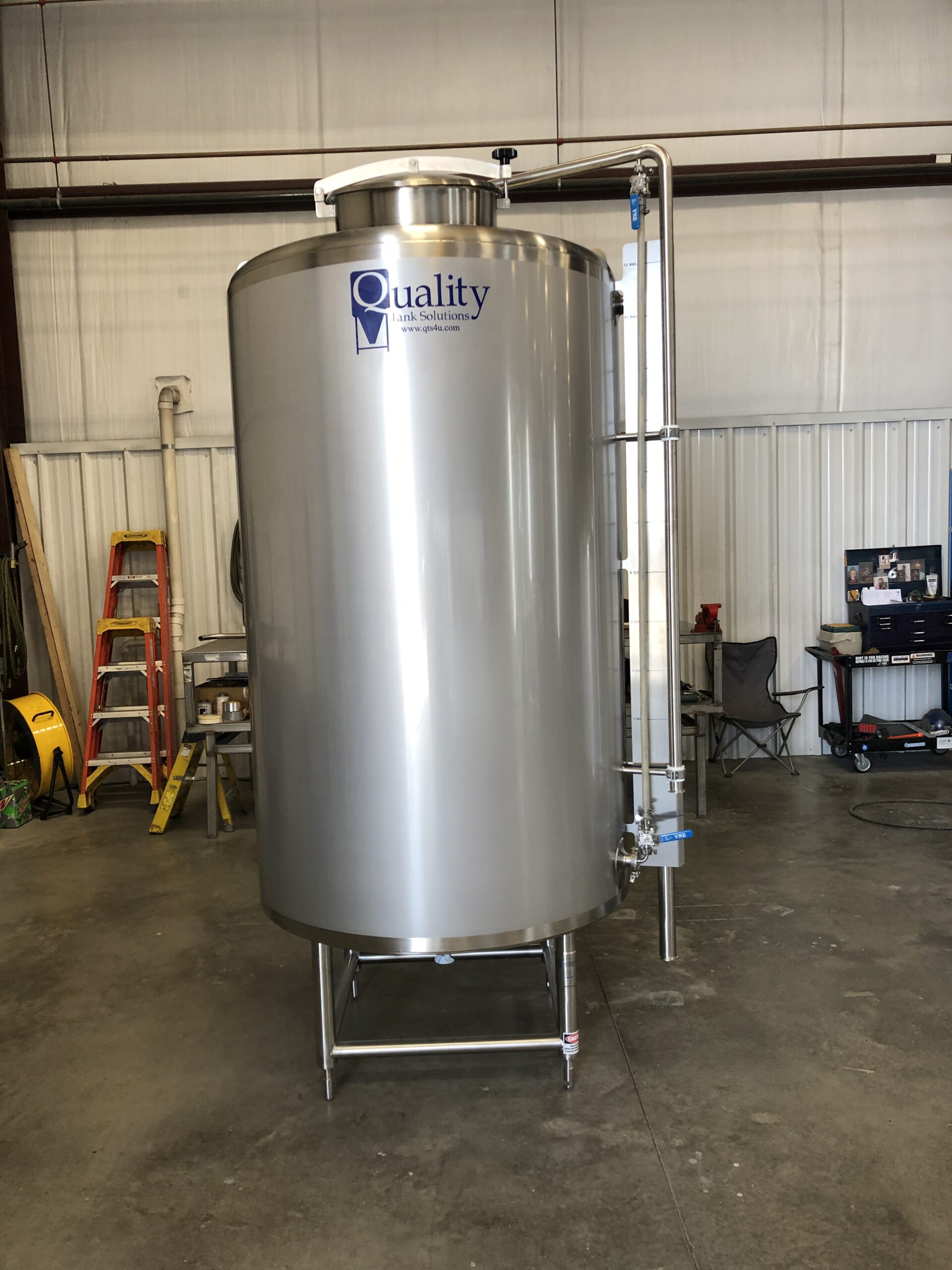

Hot Liquor Tank: Used
- Qty: 1
- Capacity: 10 BBL
- Size: 46” OD
- Height: 122” OAH w/manway open
- Empty Weight: 1130 lbs
- Full Weight: 4,345 lbs
- Full Weight: 13,585 lbs
Mash Lauter Tun: Used
- Qty: 1
- Capacity: 7 BBL
- Size: 54” OD
- Height: 96” OAH
- Empty Weight: 1,450 lbs
- Full Weight: 3,680 lbs

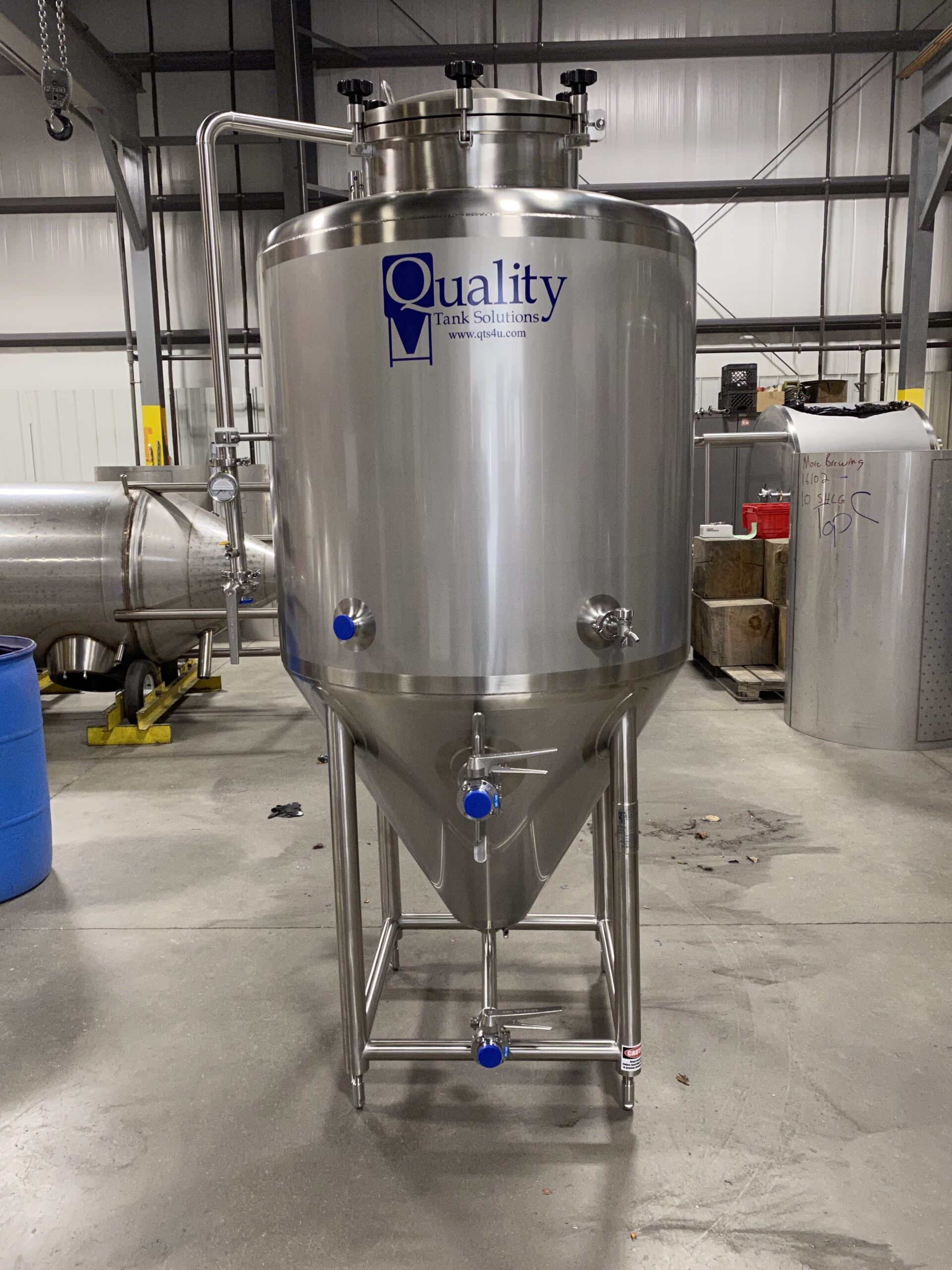

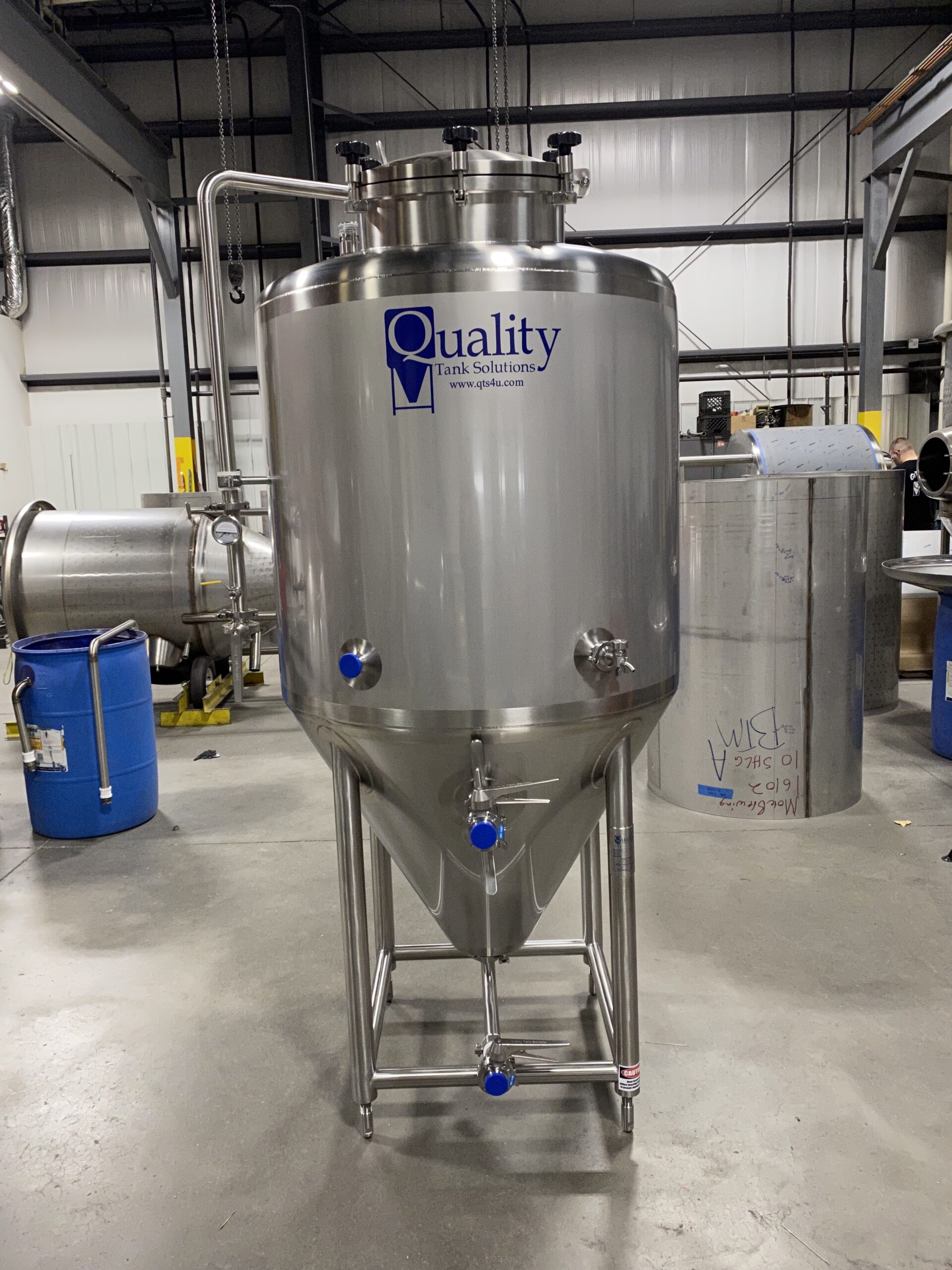

Uni/ Fermentation Tank:
- Qty: 2
- Capacity: 5 BBL
- Size: 40” OD
- Height: 90” OAH
- Empty Weight: 695 lbs
- Full Weight: 1,985 lbs
7 HP Low Pressure Indoor Steam Boiler (Rite Model)
- Feed Water System
- Blow Down Tank
- Water Softener (Dedicated to the Boiler)
- Walchem Chemical Pump
Pro Refrigeration Chillstar
- Single Compressor System – 3HP
Grain Handling:
- Mill, Flex Auger, and Controls
Plate Heat Exchanger: Thermaline
- Total of 68 CH-Style 316L SS Plates
- Wort: 212°F at 5.1 GPM
- City Water: 65°F at 6.6 GPM with 1-1/2″ Tri-Clamp Connections
- Glycol: 28°F at .6 GPM with 1-1/2″ Tri-Clamp Connections
Sold all together – Individual purchase not available
$181,175.00
