Tank Components

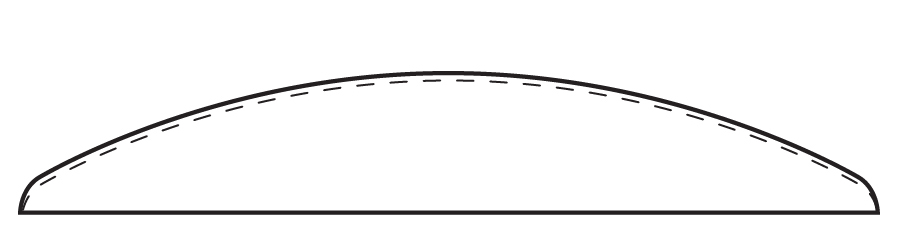

Standard Flanged & Dished Heads
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 100% of Diameter
• Diameter 18”–147”

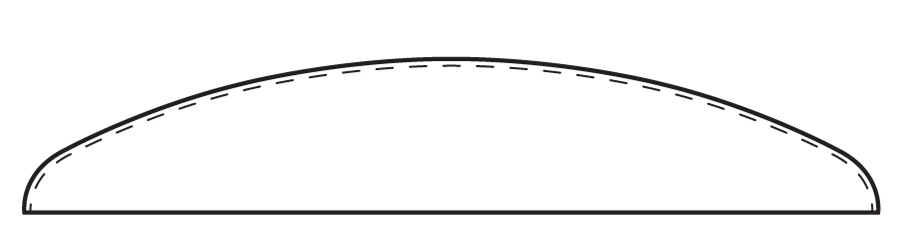

ASME Flanged & Dished
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 100% of Diameter
• Knuckle Radius is equal to 6%
• Diameter 18”–132”

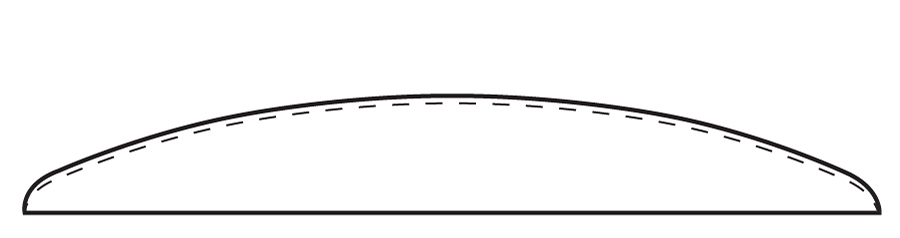

Shallow Flanged & Dished
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 120–150% of Diameter
• Diameter 18”–147”

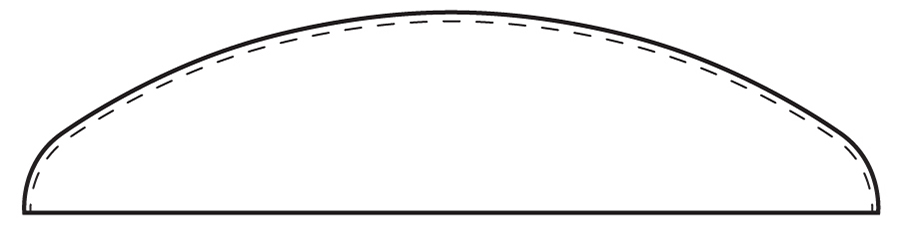

ASME 80:10 Flanged & Dished
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 80% of Diameter
• Knuckle Radius is equal to 10%
• Diameter 24”–72”

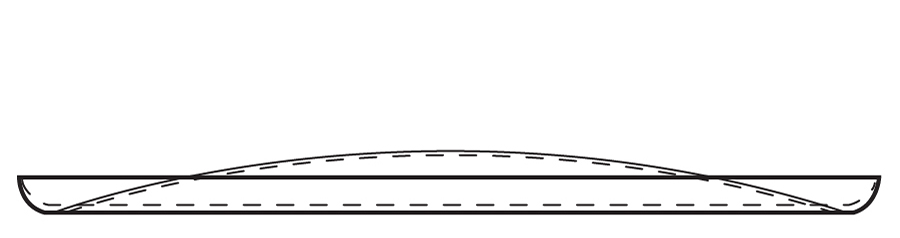

Reverse Flanged & Dished
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 150% of Diameter
• Diameter 48”–72”
• Thickness: 12ga–3/8”
• KR: 3/4”–5”

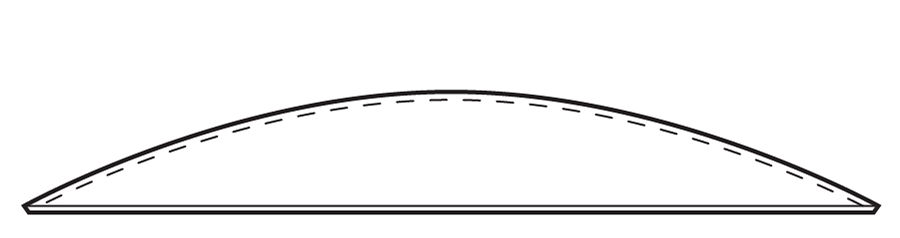

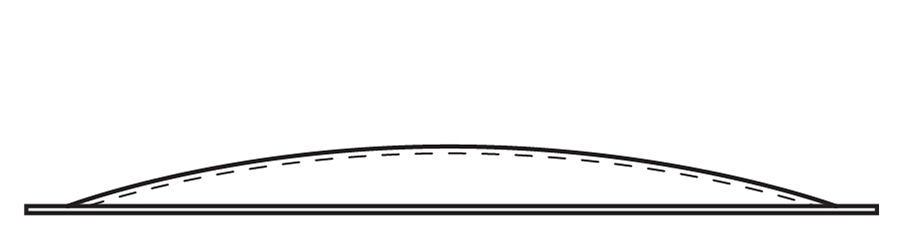

Dished Only
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Dish Radius is equal to 100% of Diameter
• Diameter 24”–149”

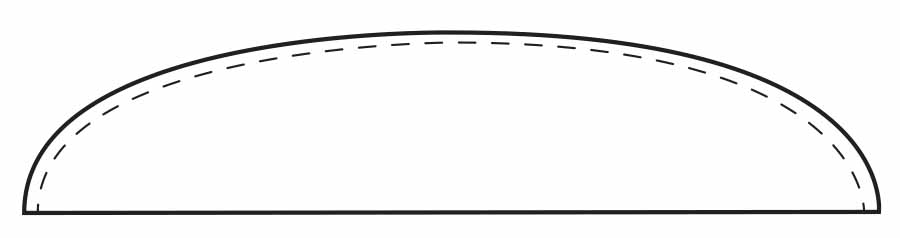

2:1 Elliptical
• Thickness: 12ga–½”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
• Diameter 24”–48”
• Thickness: 7ga–3/8”

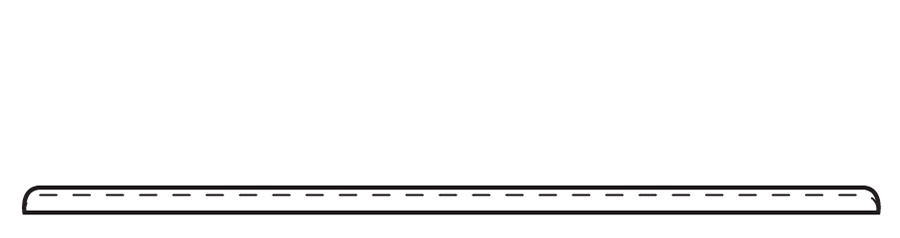

Flat & Flanged
• Diameter 14”–144”
• KR: 3/8”, 3/4”, 1”, 2”, 3”, 4”
• Thickness: 14ga–1/4”
• Type: 304, 316L
• Finish: 2B, #4, MILL

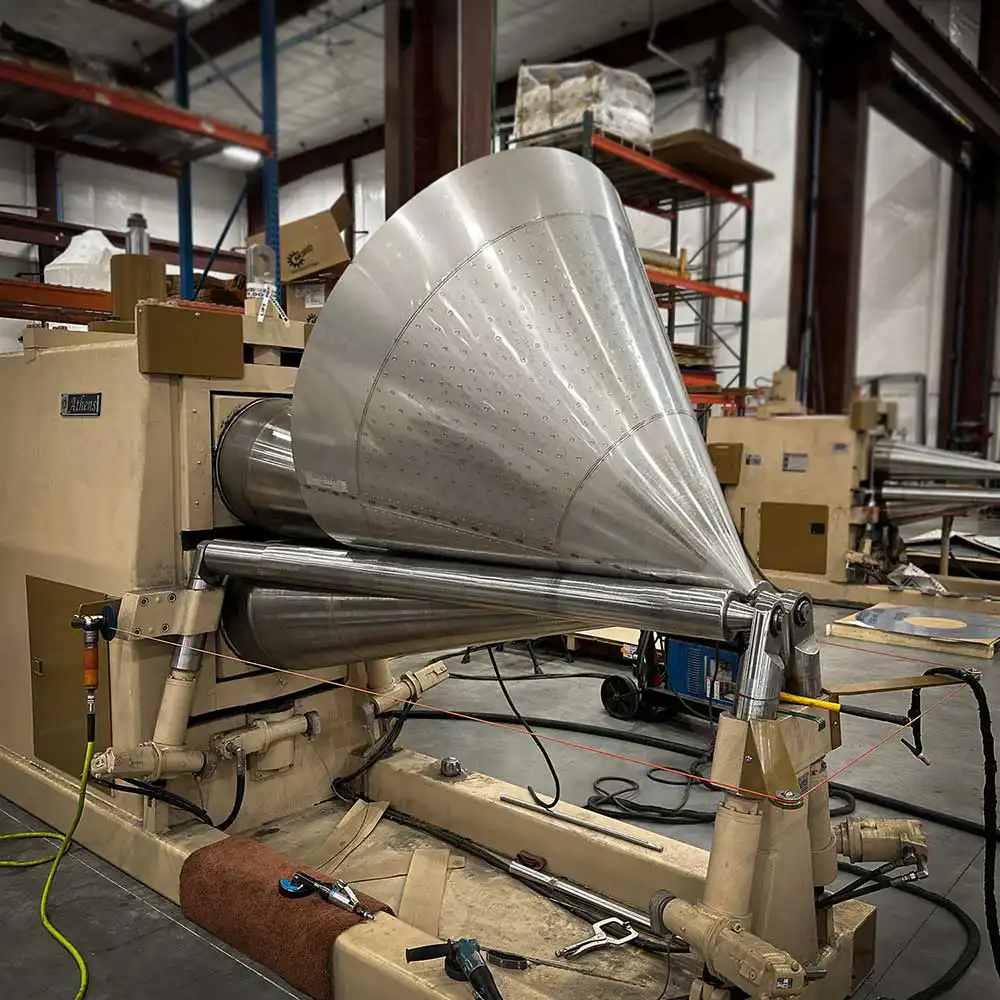

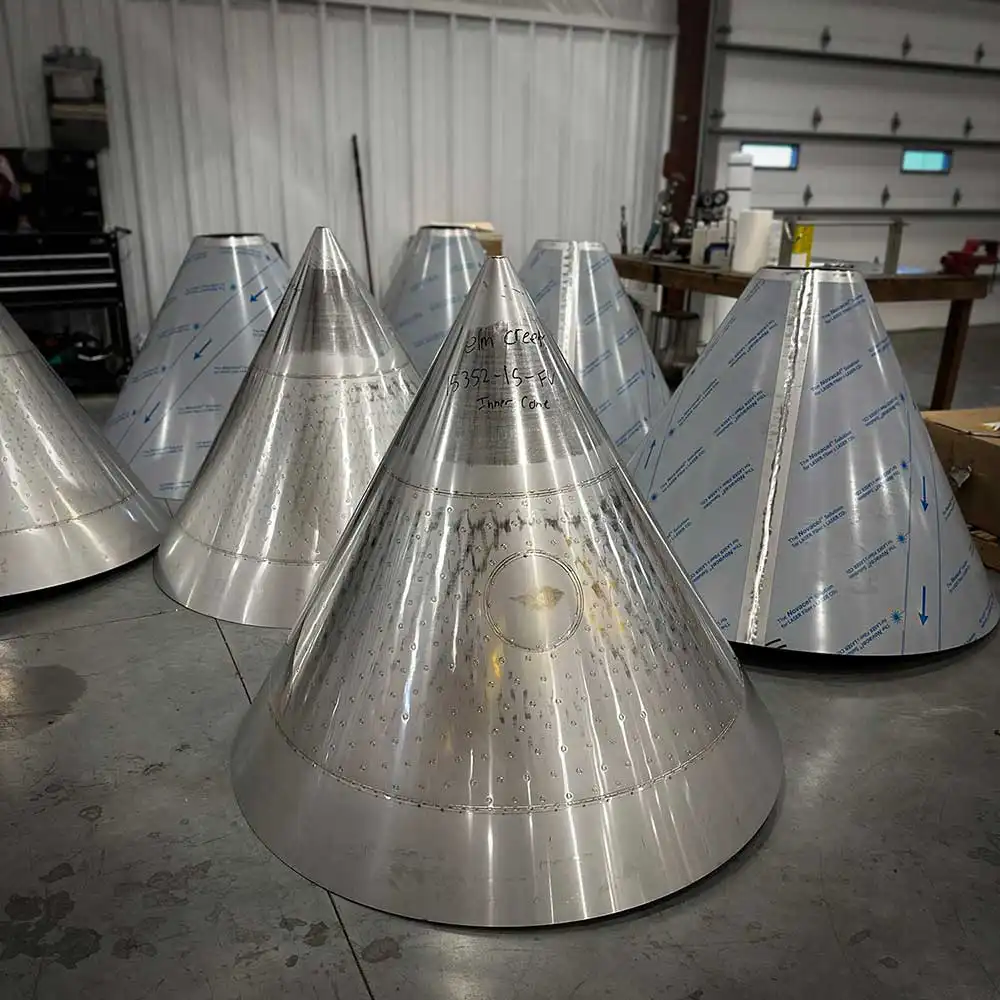

Toriconical Cone
• Round, Rectangular
• Concentric, Eccentric
• Includes angles from 45º–150º
• Diameter 24”–144”
• Thickness: 14ga–1/4”
• Type: 304, 316L
• Finish: 2B, #4, MILL
• KR: ¾”, 1”, 2”, 3”, 4”, 5”, 6”, 7”
• SF: Up to 2”
Inner & Outter Wrap
